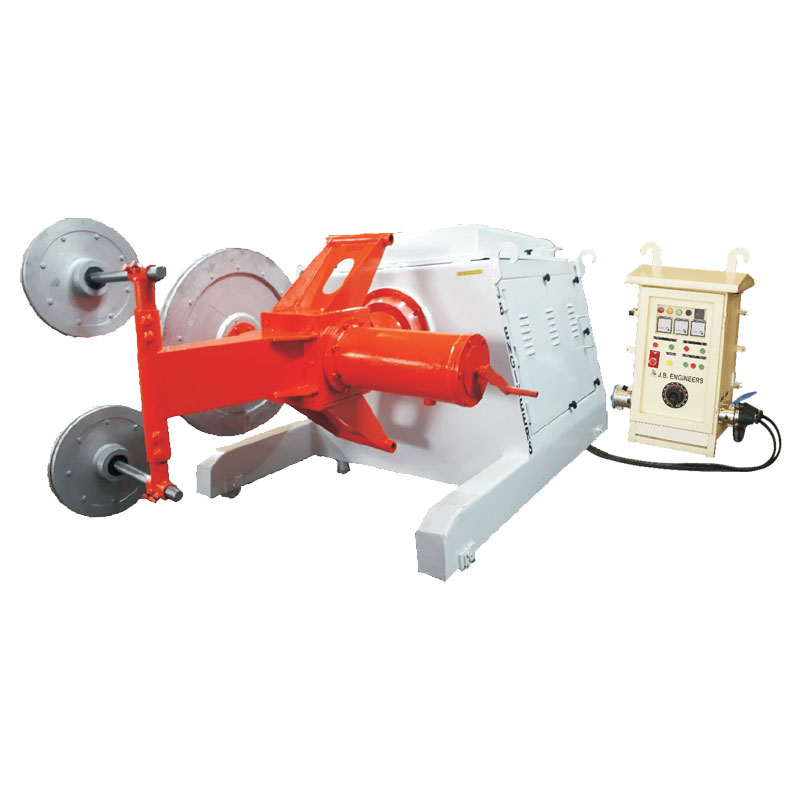

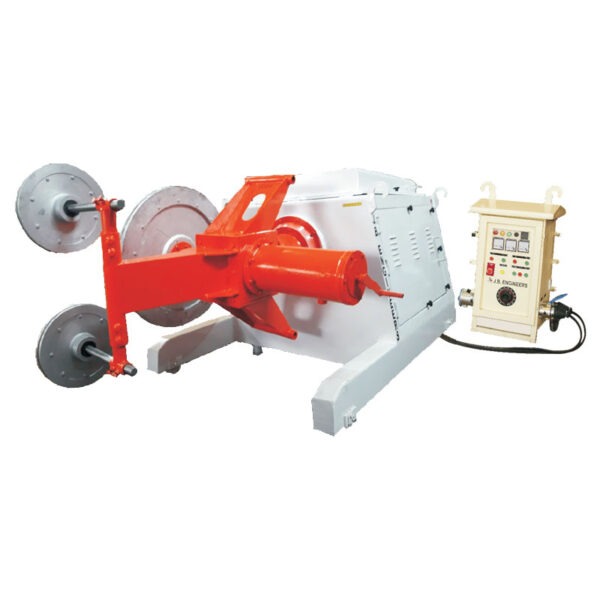

JB had developed the JB 75, JB 60, JB 40 and JB 20 Automatic Wire saw Machine to suit the entire Marbles & Granite quarry with competitive price. The machine has a stronger weight of 1900 Kg. approx. This provided better stability and accuracy in quarrying. For maximum efficiency, we provide a comprehensive service package which included training commissioning and operative instruction.
Machine is equipped with 2 H.P. DC/AC motor with variable speed.
Machine works through worm and worm wheel.
Automatic 360 degree swing system provide for main gear box adjustment with the help of control panel.
Machine handle system provide for wheel/shaft adjustments (Reverse & Forward).
Provide effortless operation of this function.
Track system with double gear.
Independent Control Panel.
790 mm main pulley giving wire saw speed of 24m/sec.
Weight 1900 kg. for 60 HP version.
Dimension:
75 HP- Height- 1400 mm, Length- 2900 mm, Wide-320 mm, Weight-2100 Kg. Approx. (Kw 55)
60 HP- Height- 1200 mm, Length- 2700 mm, Wide-300 mm, Weight-1900 Kg. Approx. (Kw 45)
40 HP – Height – 1000 mm, Length- 2500 mm, Wide-280 mm, Weight-1500 Kg. Approx. (Kw 30)
20 HP- Height- 900 mm, Length- 2400 mm, Wide-260 mm, Weight-1100 Kg. Approx. (Kw 15)
Features:
Wheel can be moved forward and backward with the handle and no spanner is requires, also the handle body is packed to ensure protection from water, resulting in long life of machine.
Vertical and bottom is possibie directly through control panel itself, no spanner required and is packed to ensure protection from water.
Main gear box and hallow shaft are covered with cover plate and oil seal. Water does not get into it resulting in long life.
Body structure is made of plate which has less joints. It has heavy structure, due to which vibrations is negligible.
Rubber strip is used inside the machine cover to avoid water from entering inside.
Main wheel can be easily fitted at the quarry with nut (like replacing tyre)
Machine gear box, hollow shaft, main shaft, rotet gearbox, dc gear box (phosphorous bronze), and other item are made up of a quality material, so it has long life.
Parts of machine gear box, hollow shaft, main shaft, rotate gear box, dc gear box comes with two years replacement guarantee (on parts only) in case of any technical issues.
Single person can operate the machine

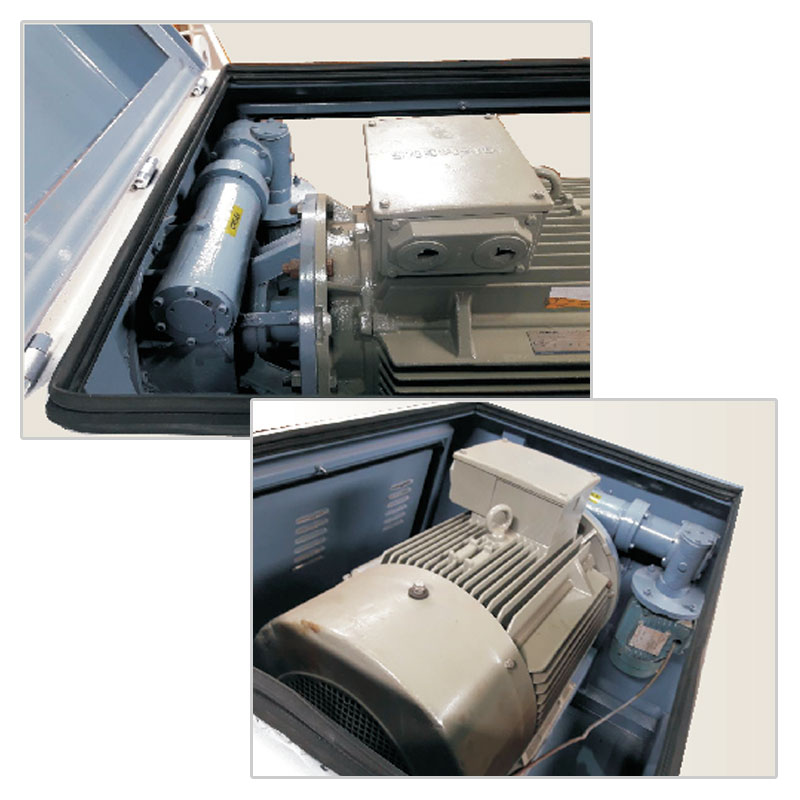

Main motor is flange and mounted and is directly coupled with gear box resulting in perfect alignment and increased life of bearing and cross.
